- Spec table

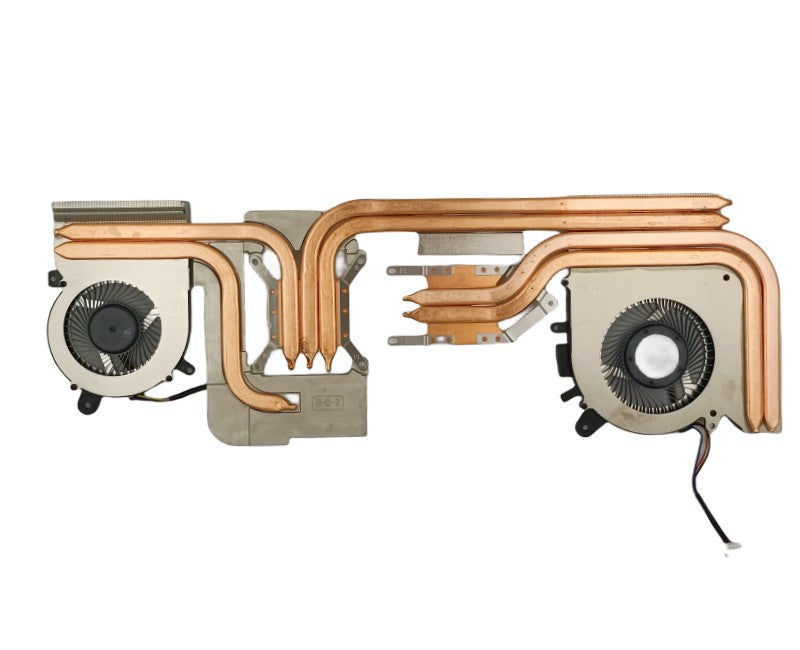

| MECH FANSINK | MECH FANSINK |
| H/S DIM. | 328.55*131.27*13.1mm |
| MATERIAL | AL+CU |
| START/RATED VOLTAGE | 2.5V/5V |
| RATED CURRENT | 0.65A/0.36A |
| POWER | 3.25W/1.8W |
| RPM | 4350RPM/4200RPM |
| NOISE | 50(53MAX.)dB/46(49MAX.)dB |
| CONNECT PIN/PITCH | 4P/2 |
| Excerpt of suitable series | Katana GF66 11UE(MS-1581) Katana GF66 11UG(MS-1581) Sword 15 A11UE(MS-1581) Sword 15 A11UG(MS-1581) Pulse GL66 11UGK(MS-1581) Pulse GL66 11UEK(MS-1581) Pulse GL66 11UGKV(MS-1581) Crosshair 15 A11UEK(MS-1581) |
