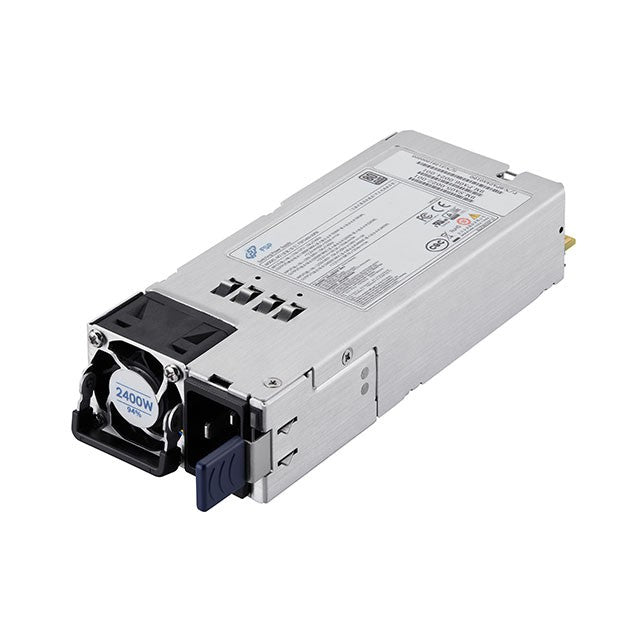

Product Overview: The FSP2400-20FM is a high-density, 2400-watt enterprise-grade redundant power supply designed by FSP Group. Featuring an 80 PLUS Platinum efficiency rating, it provides exceptional reliability and energy savings for mission-critical data centers, industrial applications, and high-performance servers.
Technical Specifications:
- Manufacturer: FSP Group
- Model/Part#: FSP2400-20FM
- Wattage: 2400 Watts
- Efficiency: 80 PLUS Platinum Certified
- Input Voltage: 90-264V AC / 180-310V HVDC
-
Output (+12V):
- @ 90-140V: Max 82A
- @ 180-264V: Max 180.3A - 196.7A
- Dimensions: 185 x 73.5 x 39 mm
- MTBF: 500,000 hours at 50°C (100% load)
Key Features:
- Redundant Design: Dual hot-swappable modules for 24/7 uptime.
- Full Protection: Includes OVP (Over Voltage), OPP (Over Power), and SCP (Short Circuit Protection).
- High Altitude Support: Certified for operation up to 5,000 meters.
- Low iTHD: Minimal total harmonic distortion for cleaner power delivery.
