- Spec table

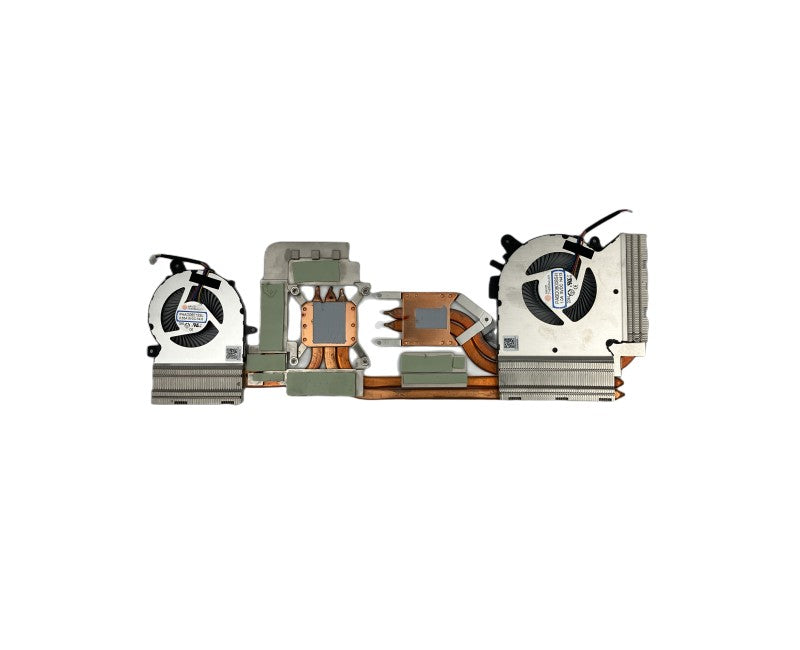

| MECH FANSINK | MECH FANSINK |
| H/S DIM. | 322.05*109.66*12.6mm |
| MATERIAL | AL+CU |
| START/RATED VOLTAGE | 2.5V/5V |
| RATED CURRENT | 0.65(1MAX.)/0.36(0.55MAX.)A |
| POWER | 3.25(5MAX.)/1.8(2.75MAX.)W |
| RPM | 4350/4200RPM |
| NOISE | 50(53MAX.)/46(49MAX.)dB |
| CONNECT PIN/PITCH | 4P/ |
| Excerpt of suitable series | GF65 Thin 9SD(MS-16W1) GF65 Thin 9SE(MS-16W1) GF65 Thin 10SER(MS-16W1) GF65 Thin 10SDR(MS-16W1) GF65 Thin 9SEXR(MS-16W1) GF65 Thin 10SCSXR(MS-16W1) Creator 15M A9SE(MS-16W1) Creator 15M A9SD(MS-16W1) GF65 Thin 10UE(MS-16W2) |
